Technical Bulletin
5R55 Transmission - 8 Lug Torque Converter Flex Plate Adapter Alignment

Ford Lincoln Mercury 5R55N/S/W with 8 lug torque converters

Issue:

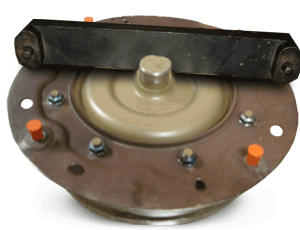

Some models use an 8 lug torque converter that requires a special alignment tool in order to properly align the flex plate adapter. If your 5R55 has an 8 lug torque converter, then this bulletin applies.

Failure to properly align the flex plate adapter can result in vibration and front area leaks. Also it can lead to torque converter, pump, and bushing failure. Use of this tool is required on all 5R55 series 8 lug converters in order to not void your warranty.

Tool Required:

Tool Required	Manufacturer	Part #

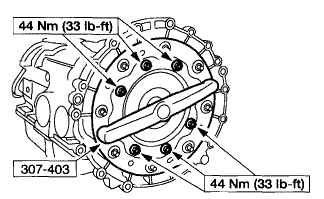

Alignment Tool	Ford Rotunda	307-403
Alignment Tool	Adapt-A-Case	T223AC
Alignment Tool	Atec Trans-Tool	T-0519

Moveras Part Numbers Affected:
M01273, M00827, M01036AA, M01036BA, M00888, M01228, M00474, M00846, M00465
